PET bottling line for still water, sparkling water, and CSD – 18,000 bph. From blow molder to pallet wrapper.
BBM reference: Linea 18KDescription
Complete bottling line for still water, sparkling water, and CSD, with a capacity of up to 18,000 bottles/hour on the current 1.5-liter PET format. Built in 2000, the line includes OPP hot glue labelling, shrink film packaging (6 lanes), application of pre-cut handles, and palletizing on Epal 1200x800 pallets with automatic slip sheet inserter. The line can be inspected until September 2025. Available either “as is” or fully overhauled and guaranteed by BBM.
Machine list:

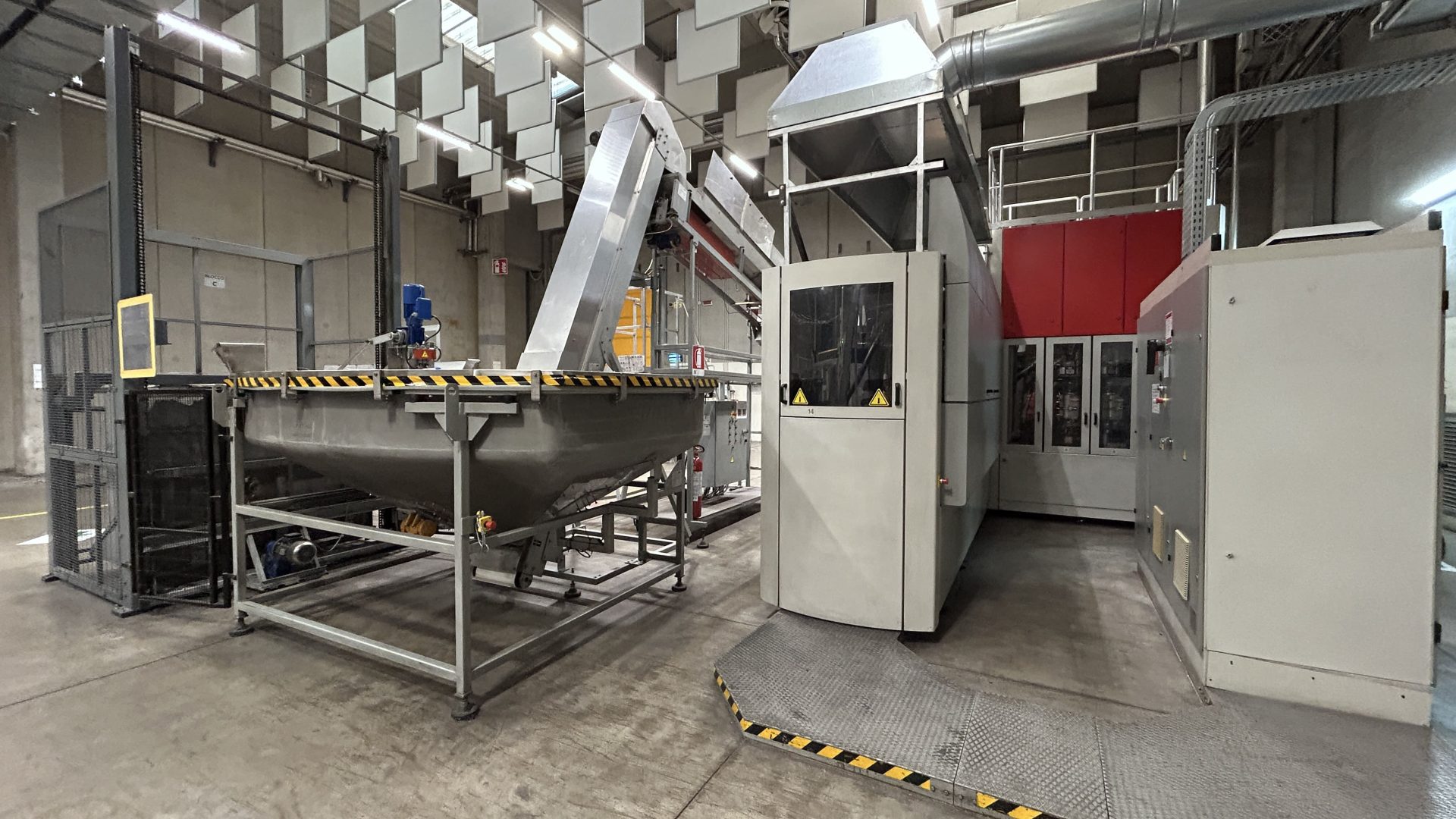

- Preform tipper VE.CO mod. 30L917 – year 1999
- Preform feeder SIDEL mod. XMMC94 – year 1999

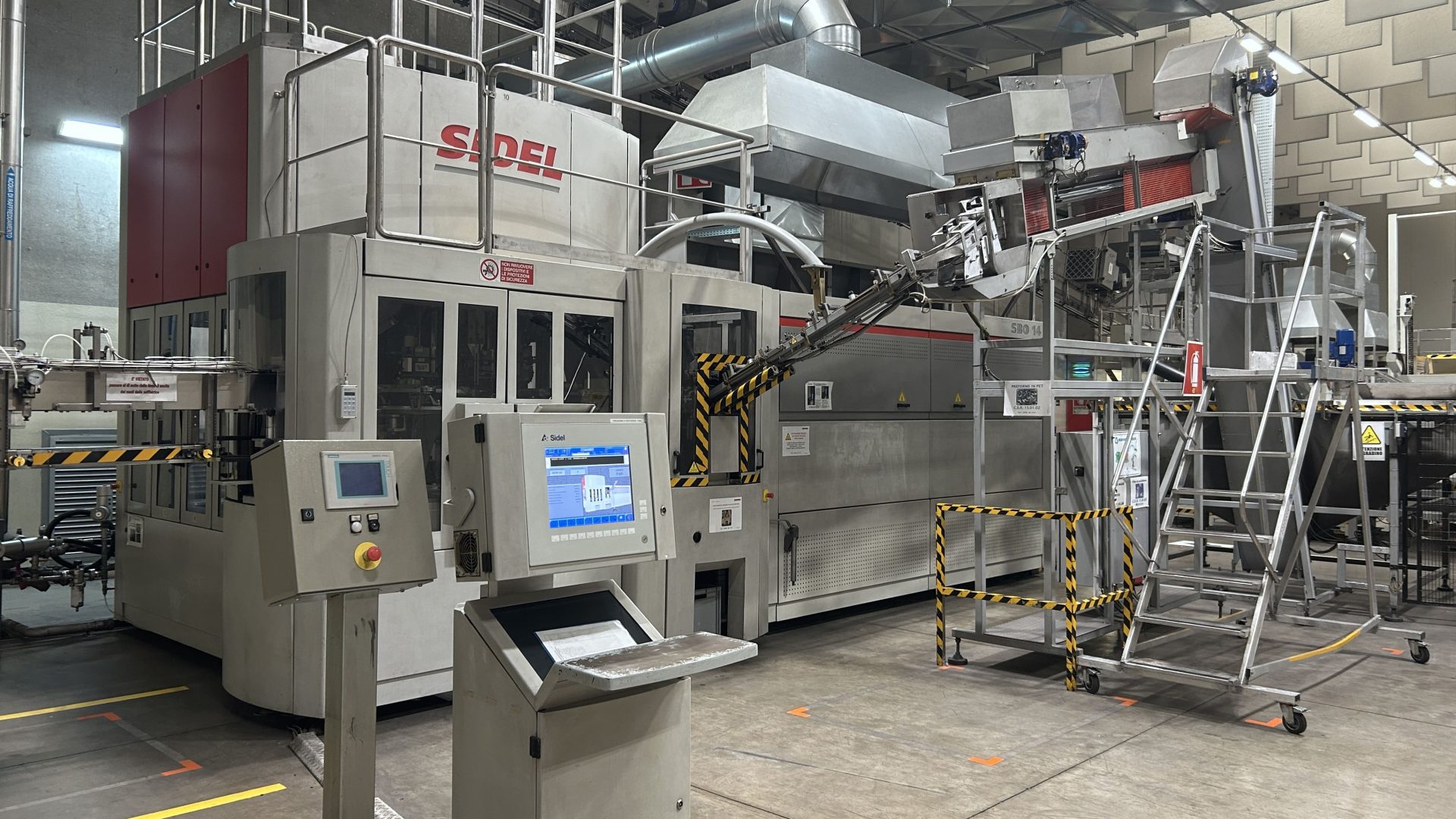

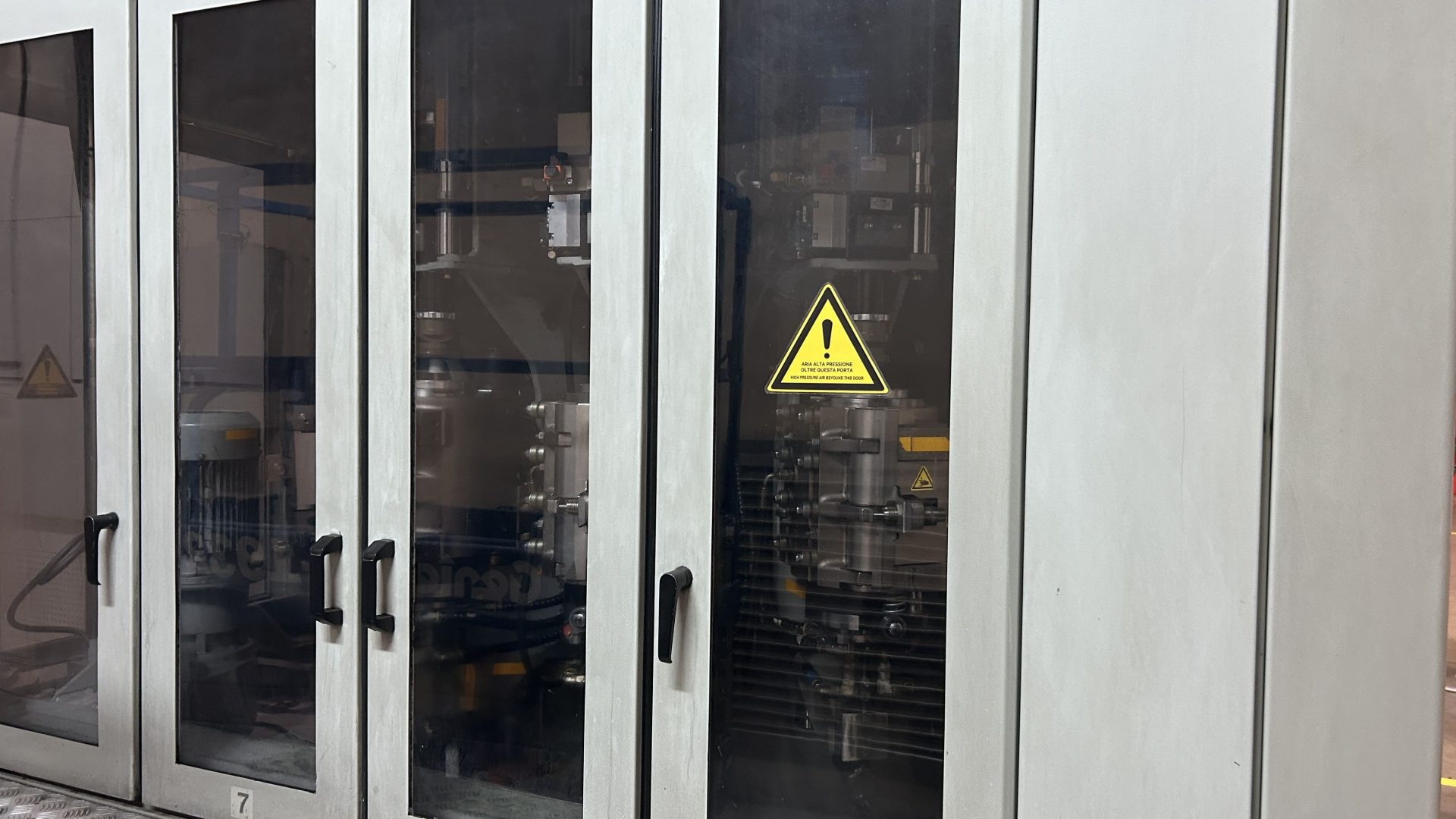

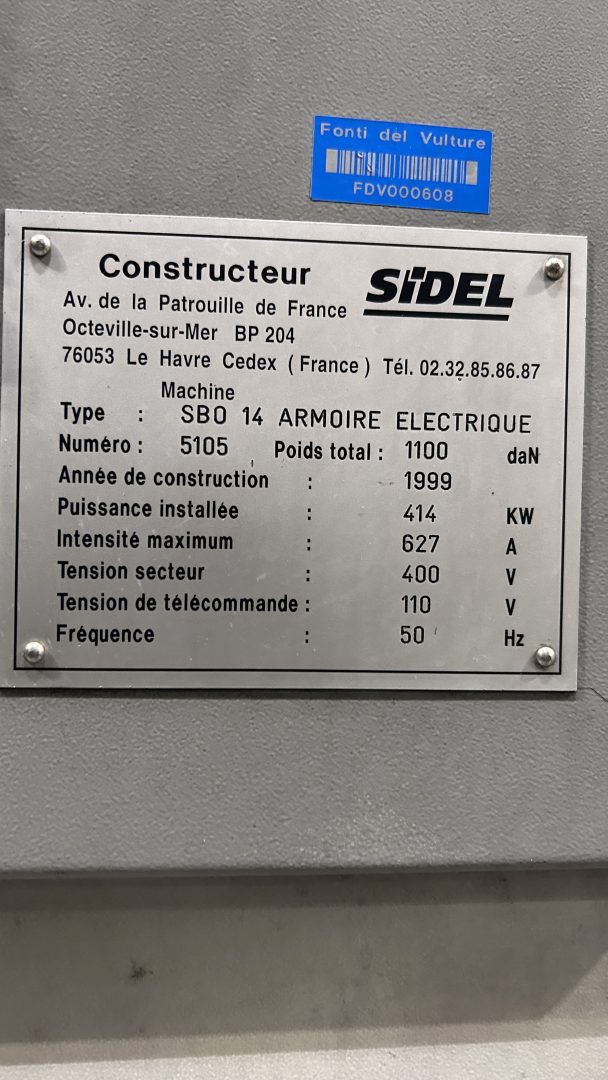

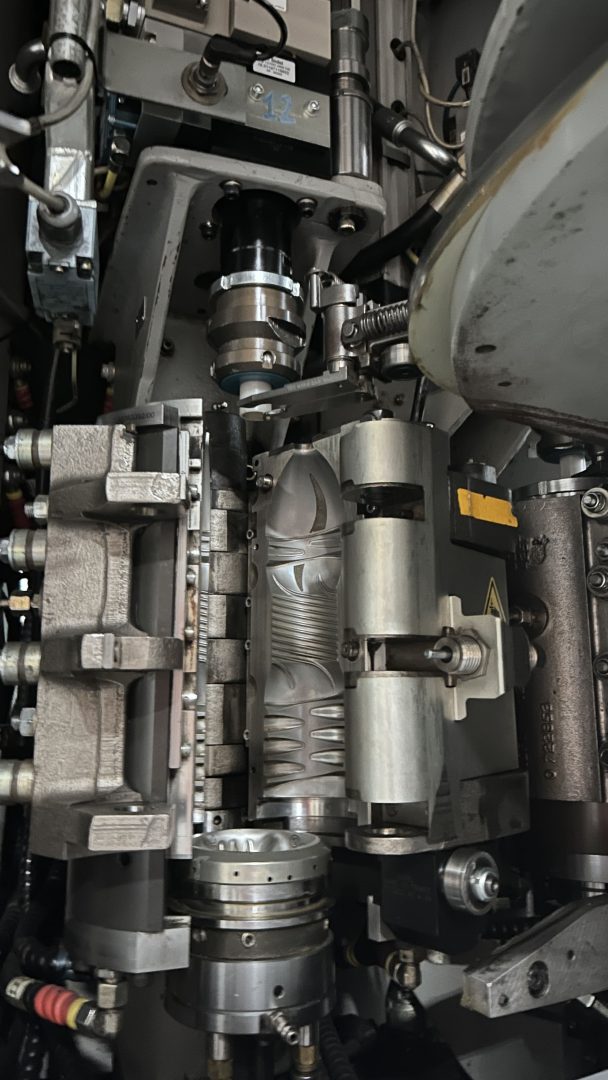

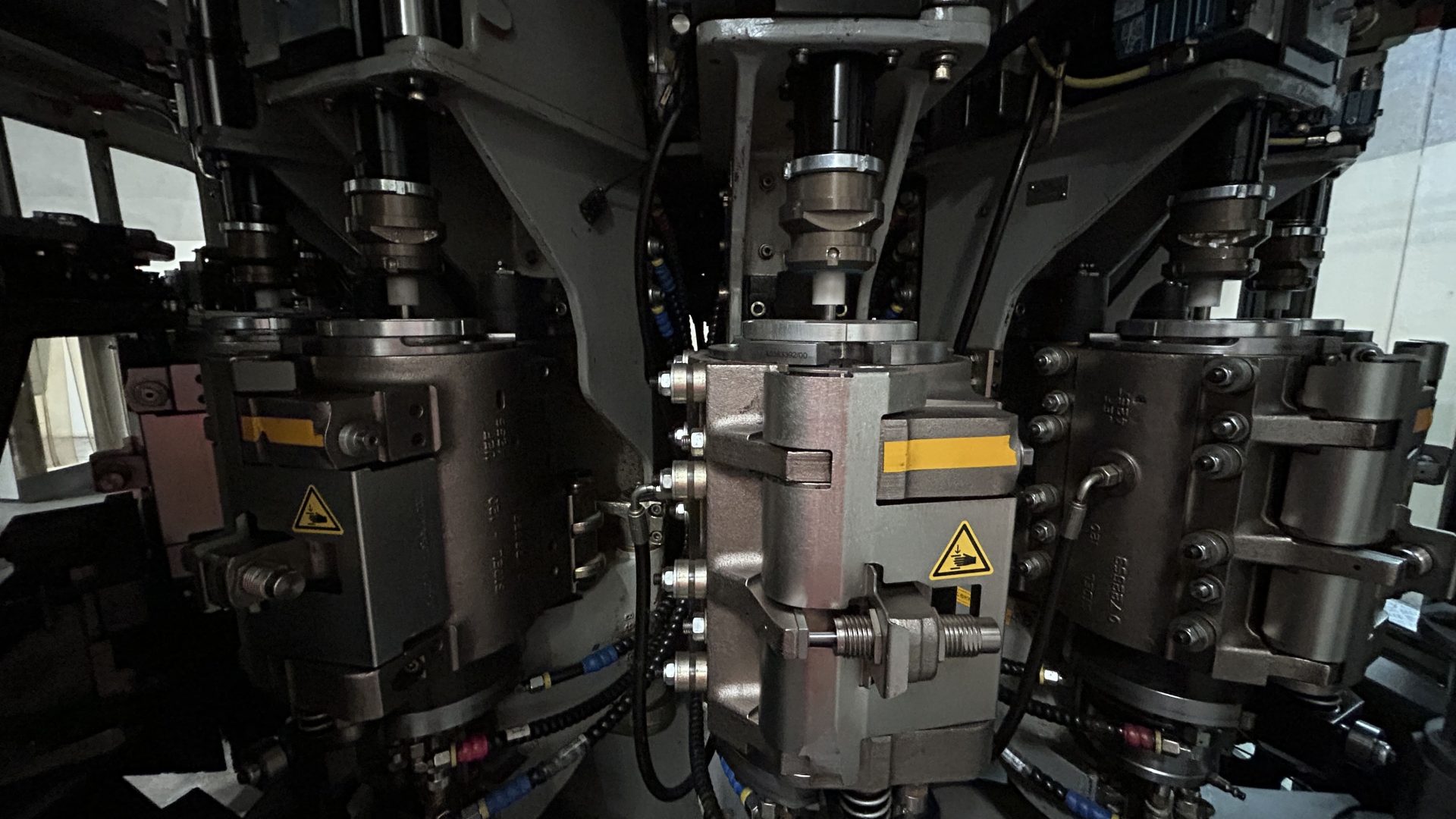

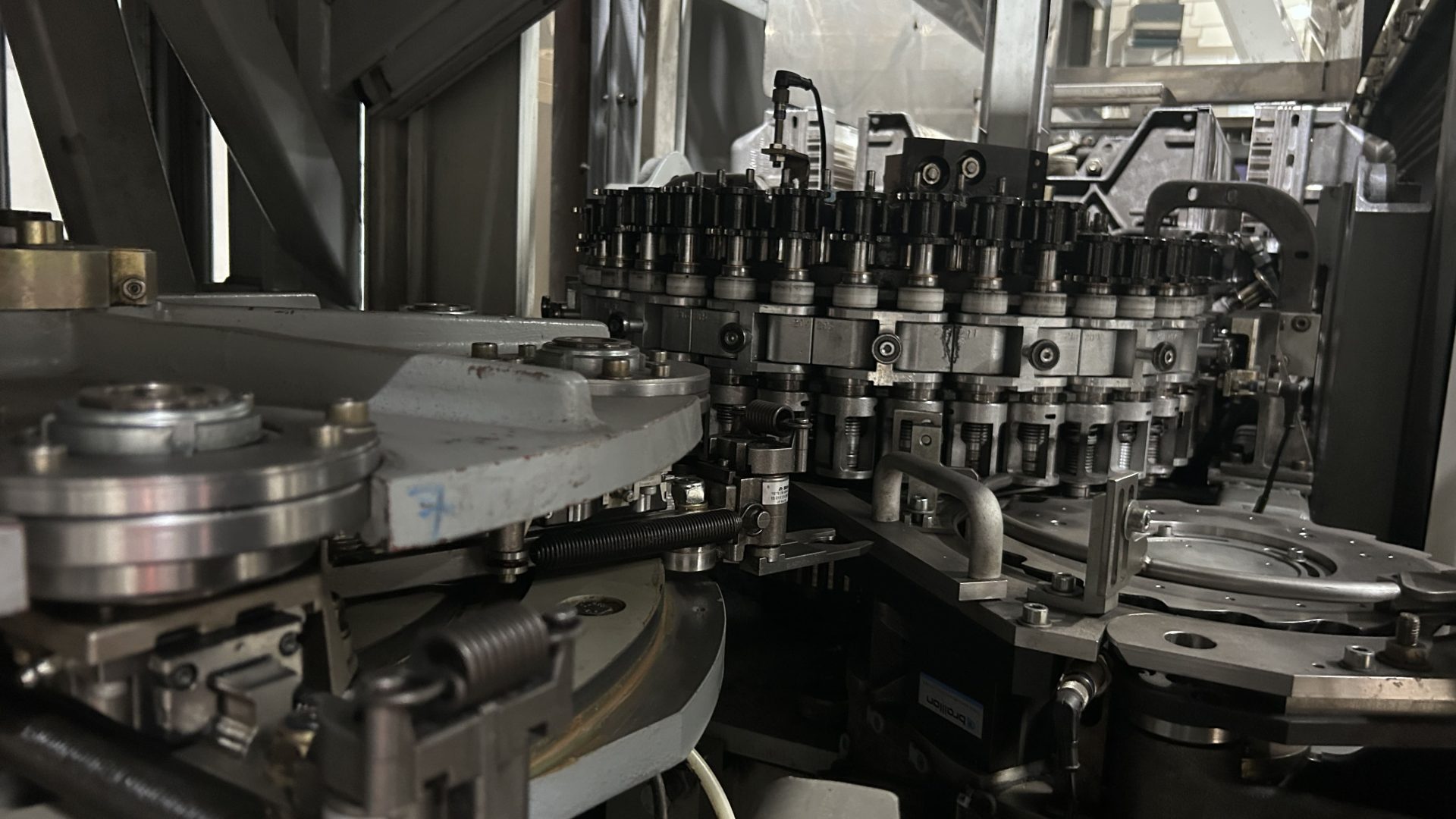

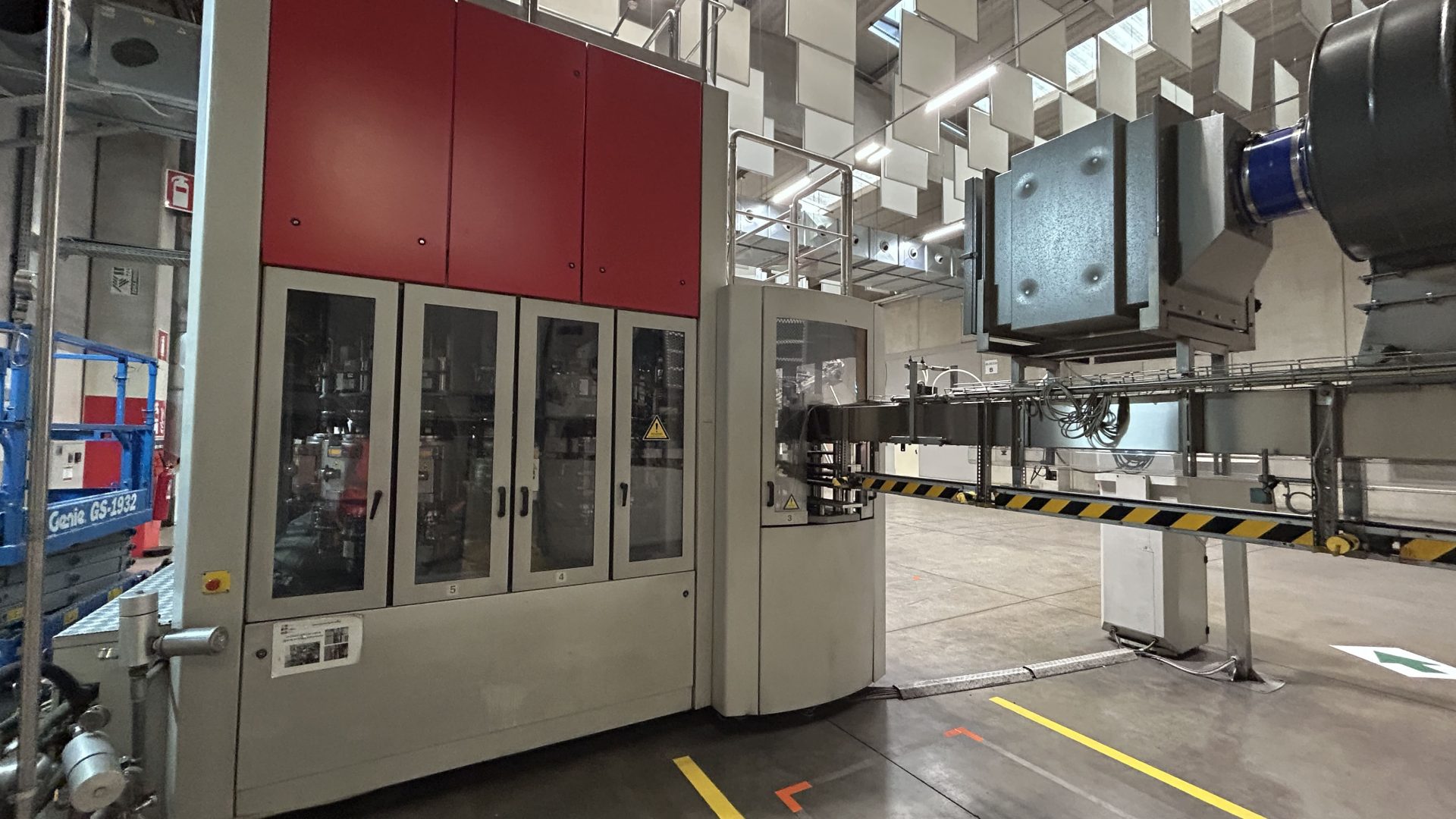

- Blow molder SIDEL SBO14 – year 1999

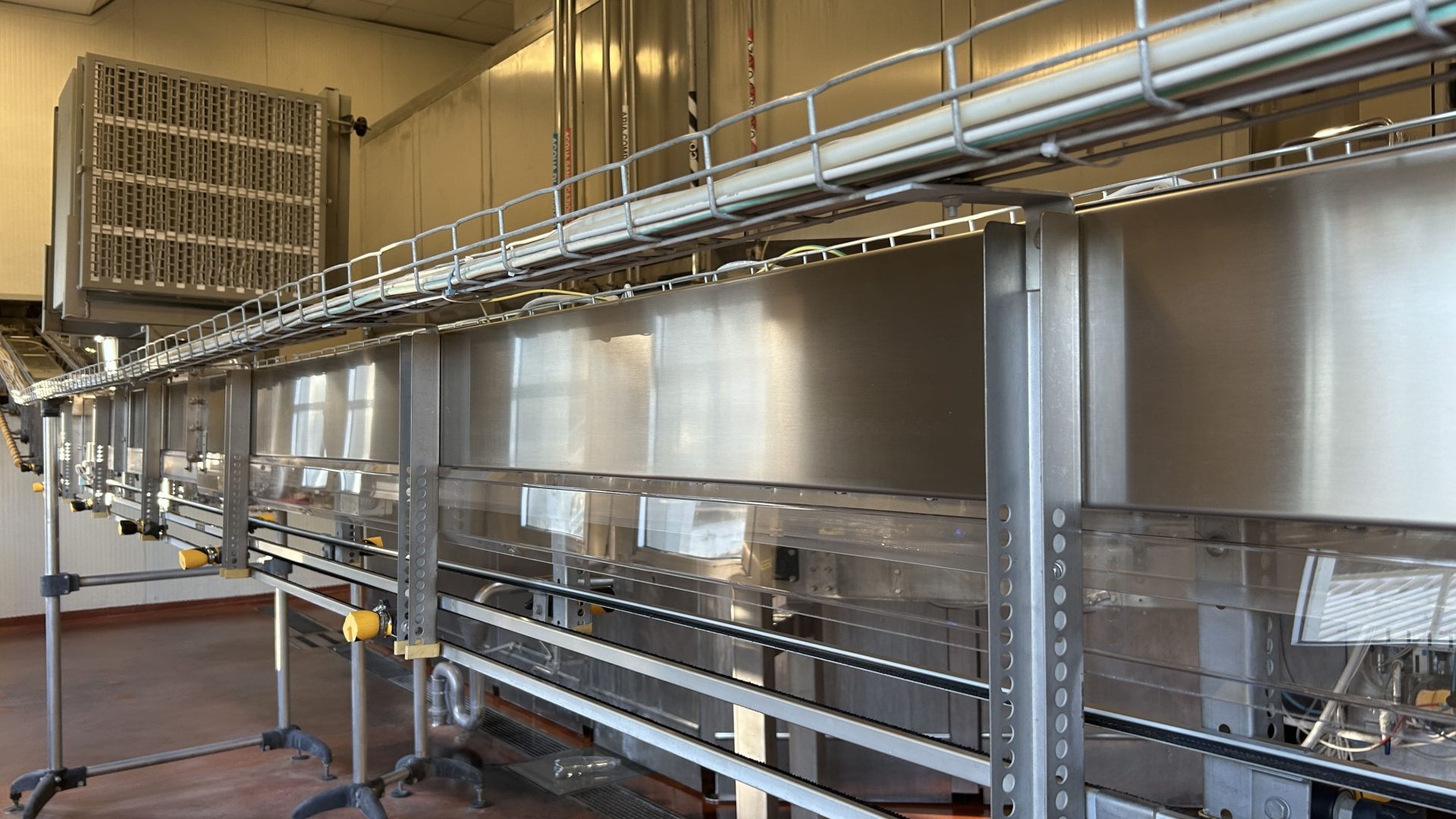

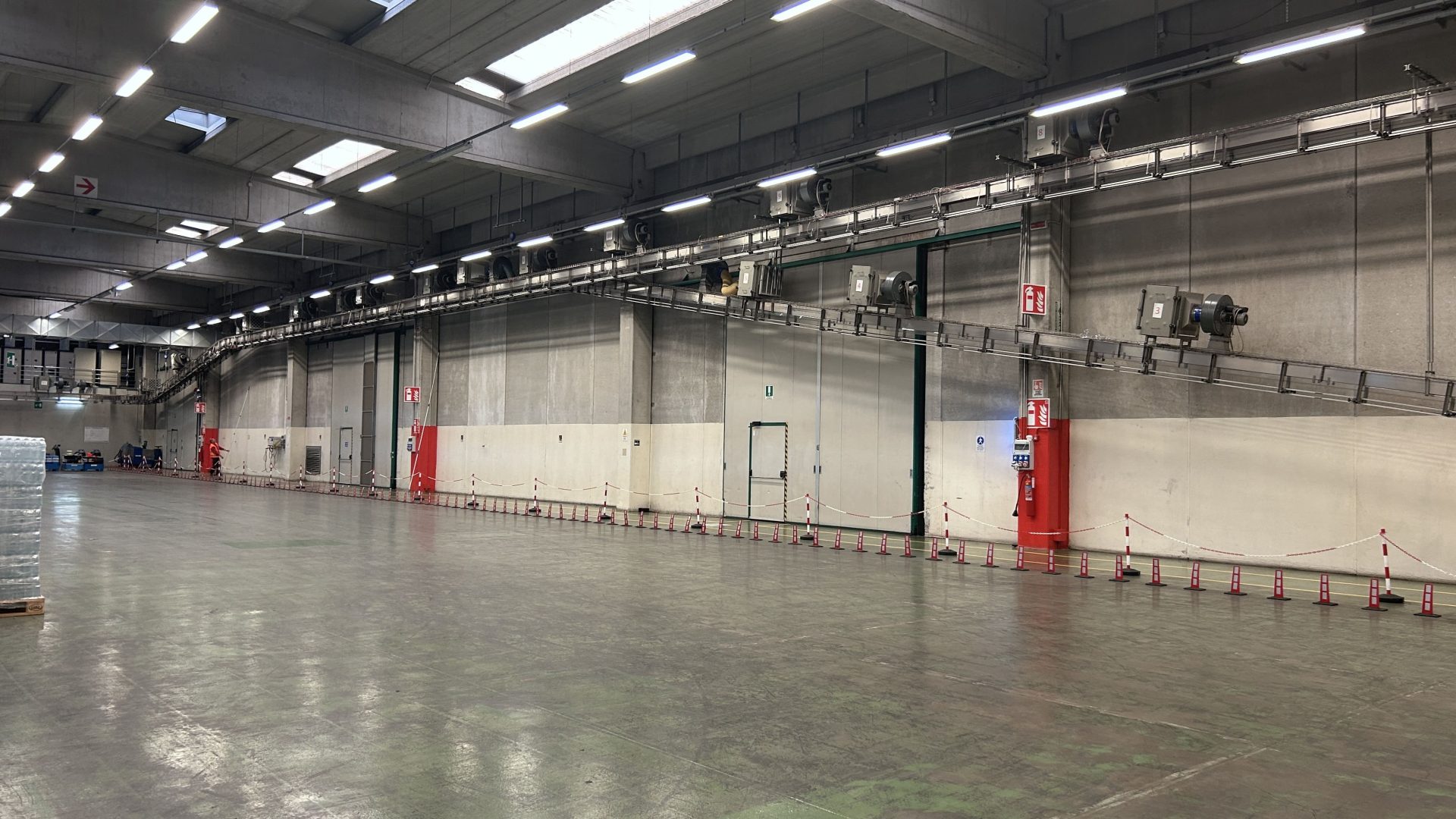

- Air conveyors LANFRANCHI mod. C170031-B – year 2007

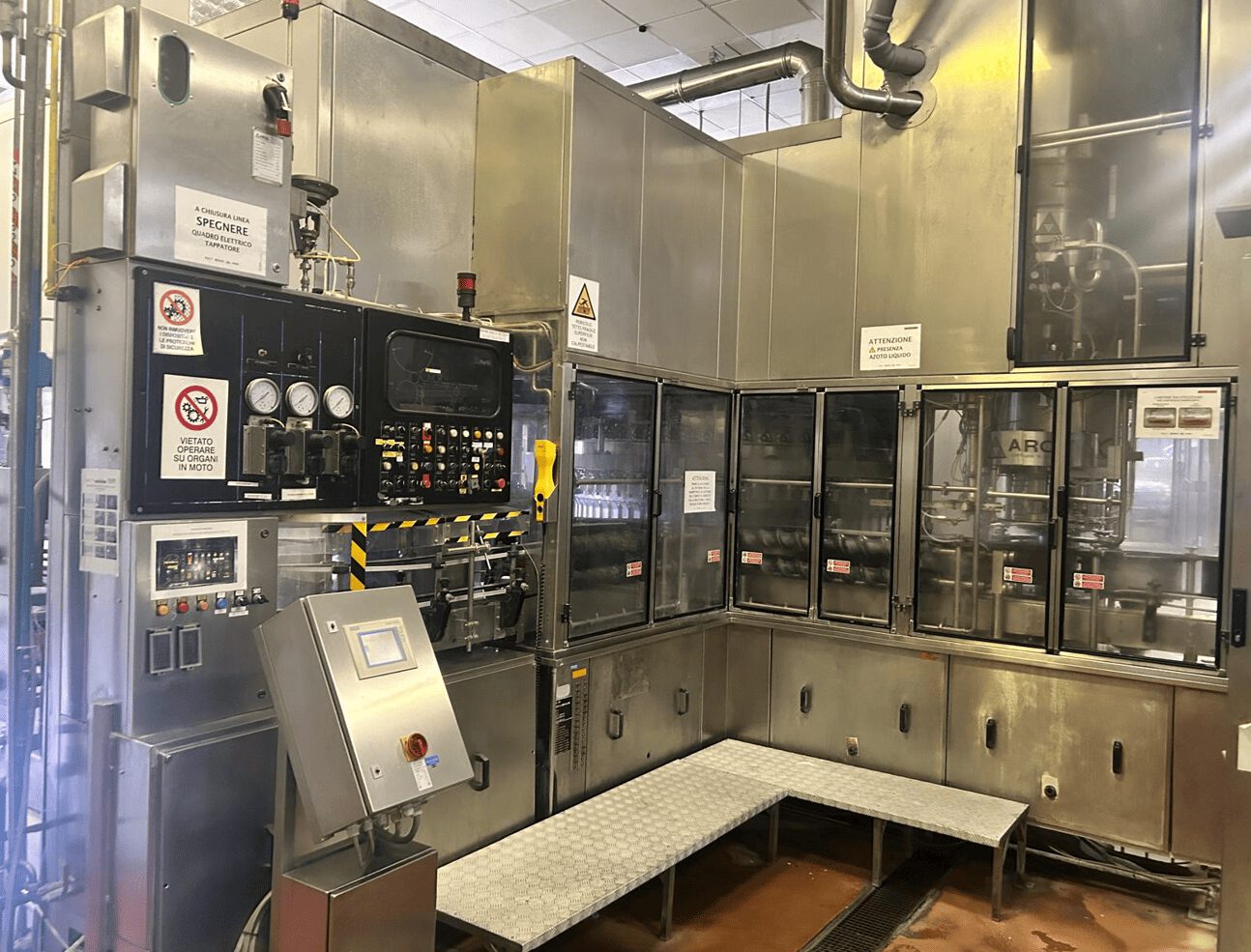

- Filler-rinser monoblock SIDEL-SIMONAZZI EUROSTAR RAA282 – year 1985
- Nitrogen doser TERBOVEN ISTE-CON 5 – year 2008
- Cap elevator PQL MECCANICA mod. 09B3 – year 2011

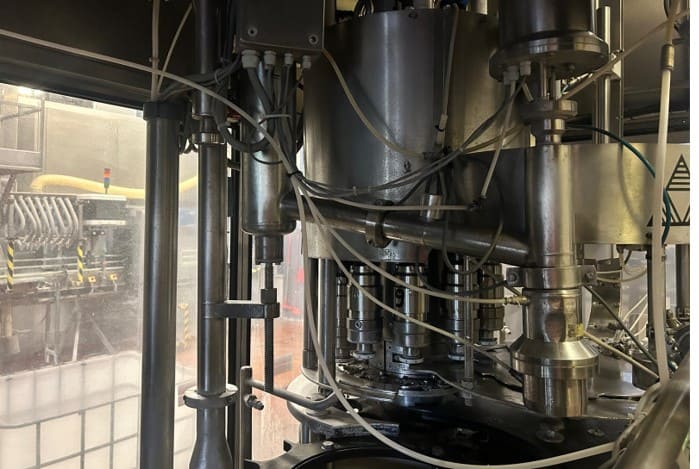

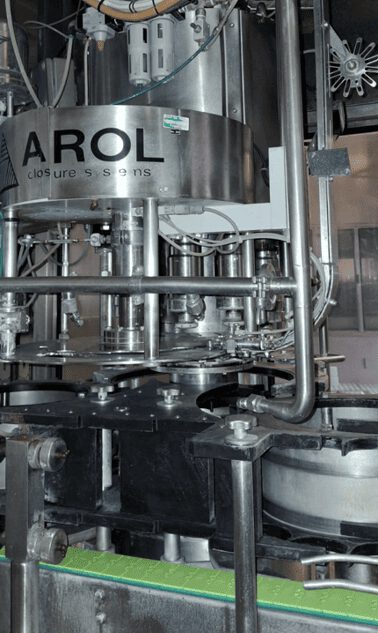

- Capping machine AROL (serial no. 4935) – year 1998
- Level inspector with pusher HEUFT (serial MHB1540, item HBB800012) – year 2013
- Level inspector HEUFT SPECTRUM (type HBBVXTXXX no. 2DG050602) – year 2013
- Level inspector HEUFT REFLEX (type HBGFIVIEW no. MHE1737) – year 2013

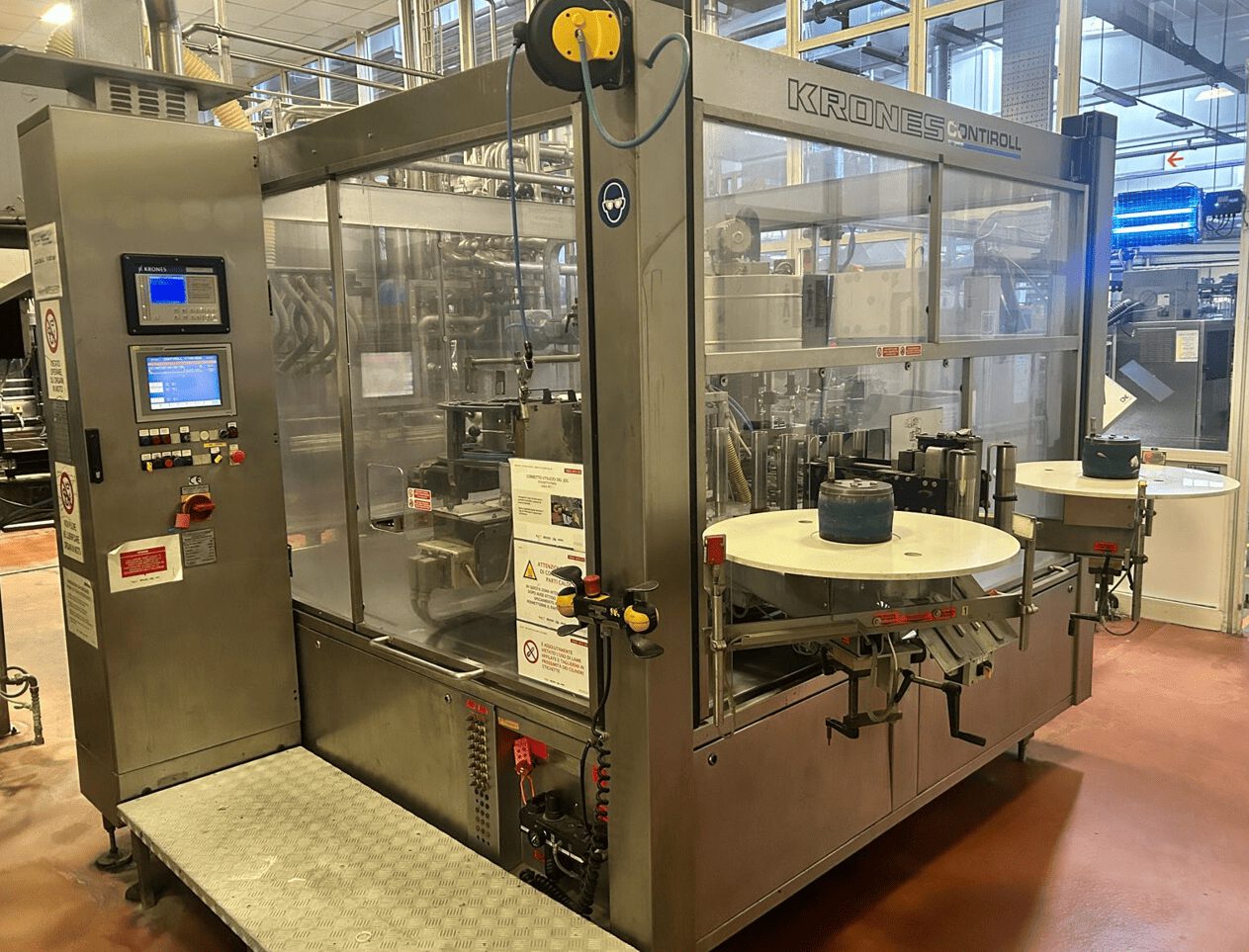

- Labeller KRONES mod. K745-628 – year 1998
- Laser coder LUMONICS SL301 – year 2009
- Bottle conveyors PROCOMAC mod. P3233/1A – year 2000
- Bottle divider PROCOMAC mod. P3227 – year 2000

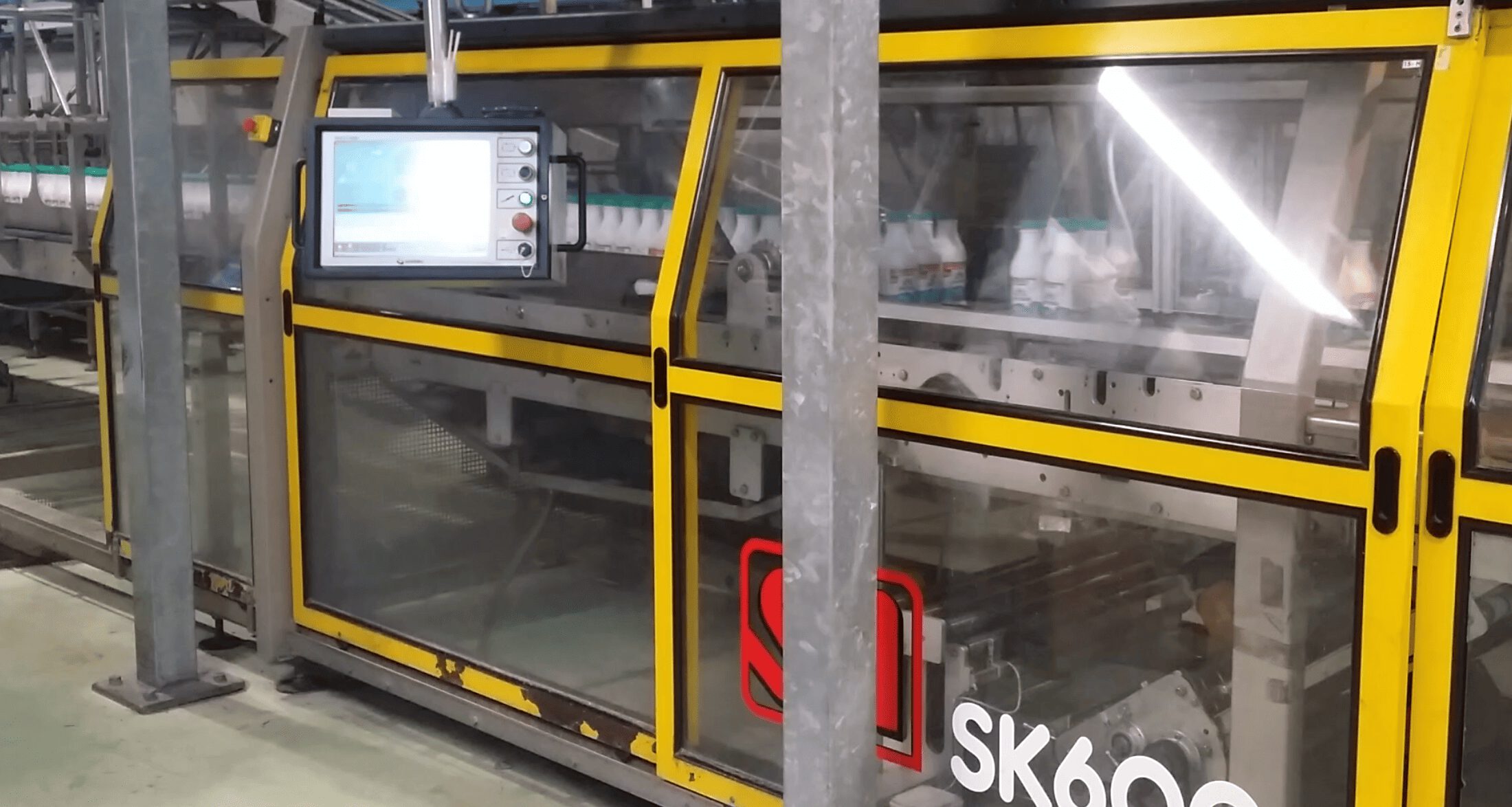

- Shrink wrapper SMI GROUP SK600F – year 1998
- Pack conveyors PROCOMAC mod. P3233/1A – year 2000
- Inkjet coder for packs MARKEM 9040_FR10140128 – year 2010

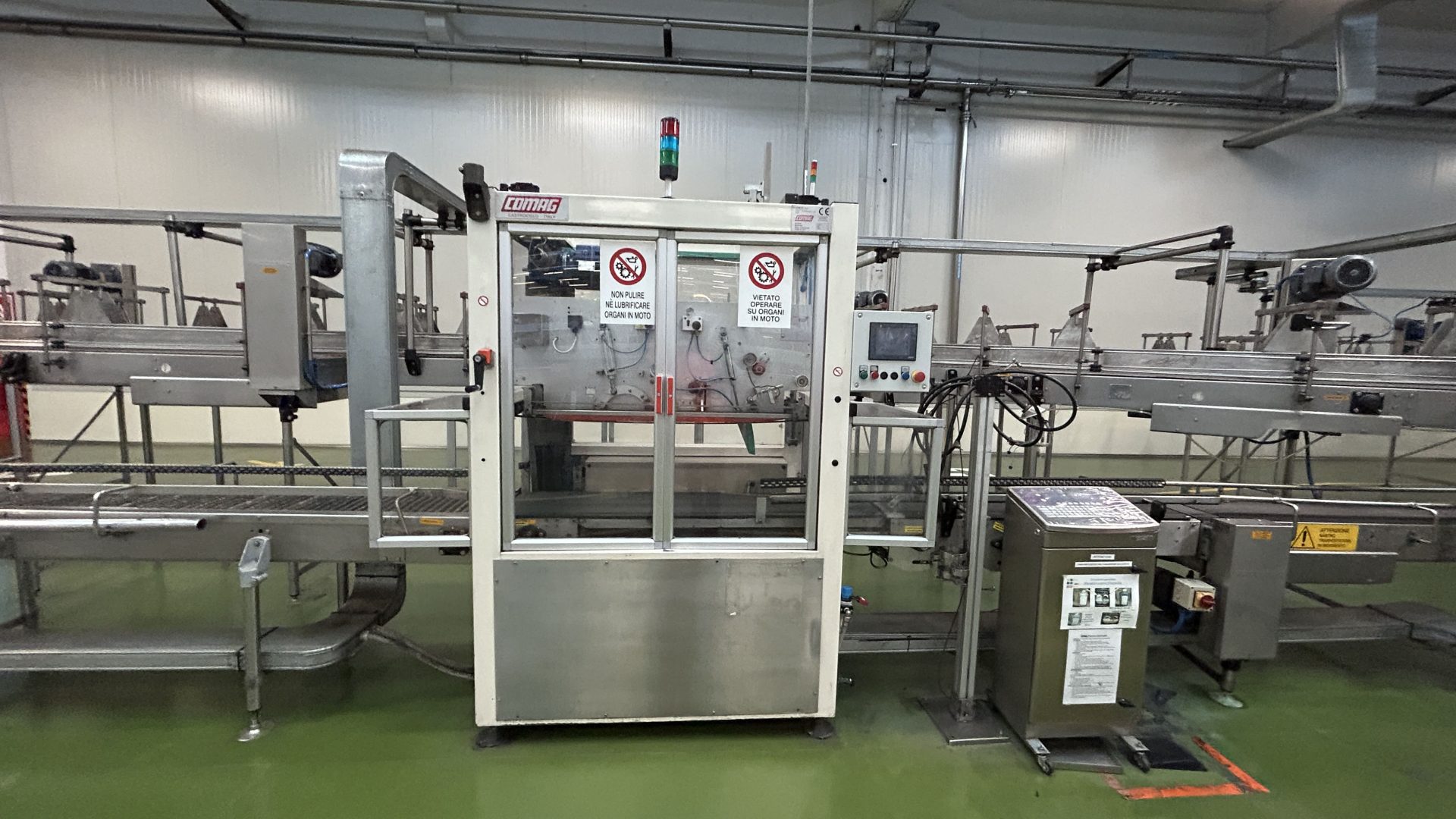

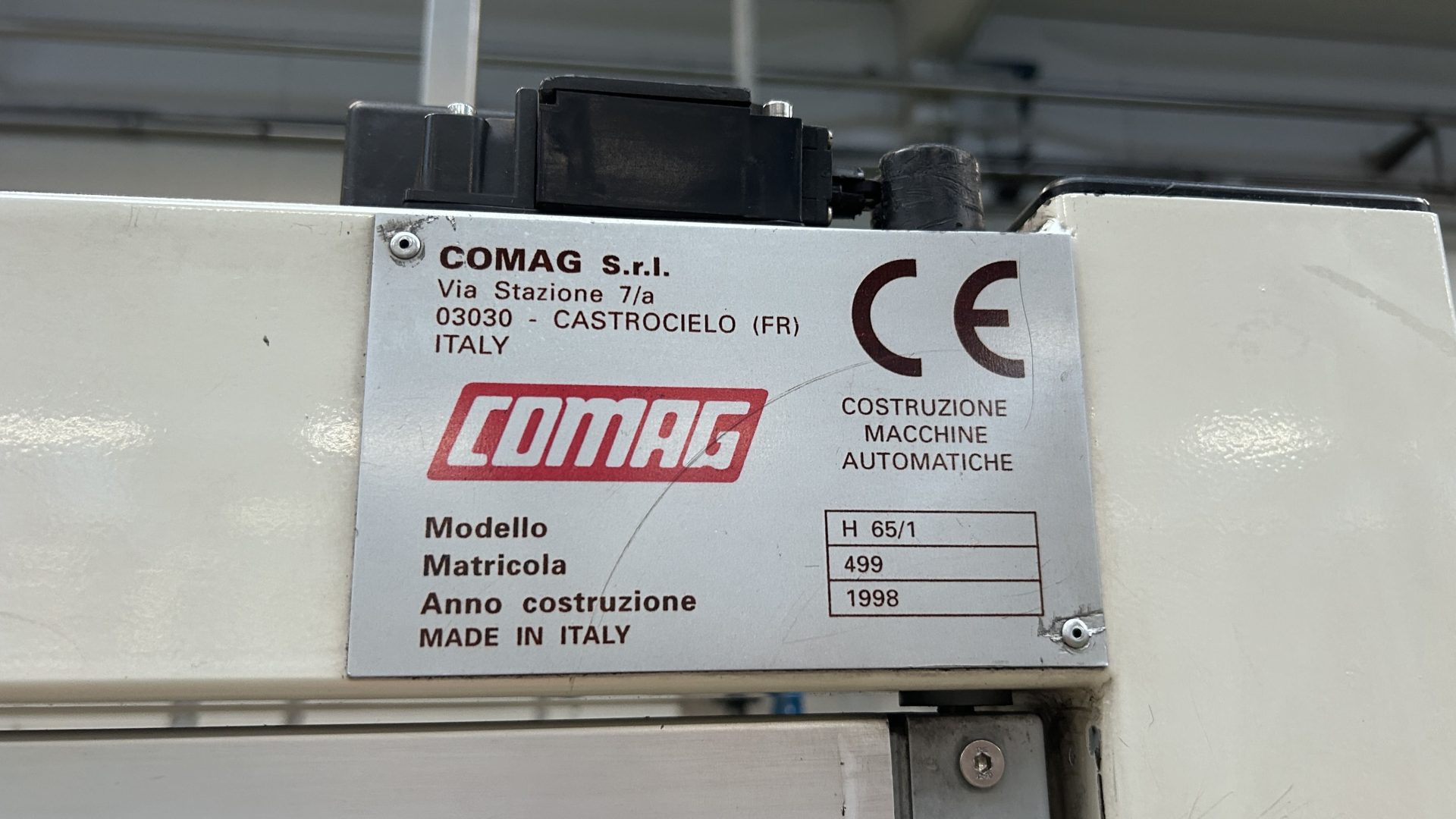

- Handle applicator COMAG mod. H65/1 – year 1999
- Pack divider L.M. mod. 28809 – year 2000

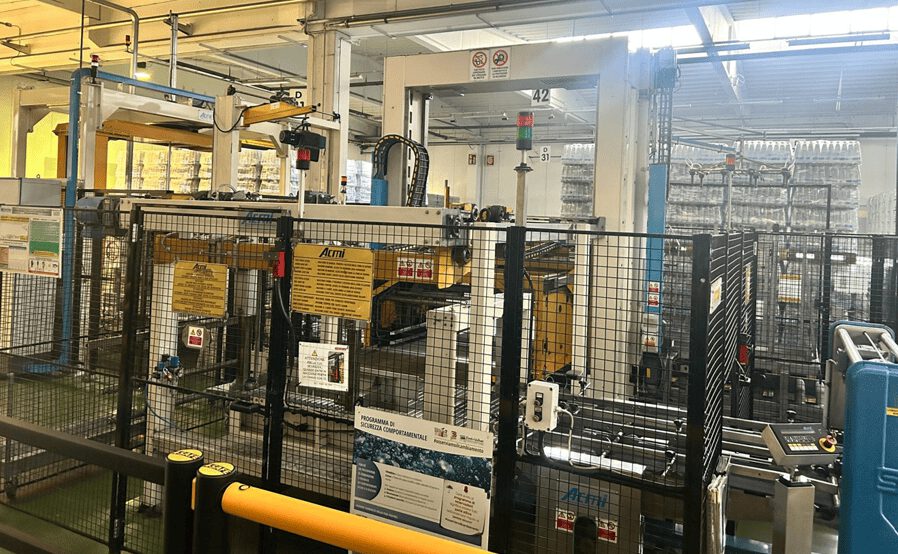

- Palletizer ACMI mod. C/1350 – year 1999
- Stretch wrapper TOSA-ACMI mod. 120+475 – year 2012
Power supply :
400 V – 3 PH – 50 Hz
Max. container height :
350 mm
Year of construction :
2013
1999
1998
2000
2010
2009
2007
2008
2011
1985
2012
CO2 :
Yes
Machine condition :
As It is
Overhauled and Guaranteed
Ready-to-use With Compatible Spare Parts
Max reel size :
Ø 500 mm
Working direction :
Counter-clockwise
Where to audit :
BBM Showroom – Lenna (BG)
Current size (ml) :
1500 ml
Warranty :
6 months
Machines :
Complete PET plant
Brand :
Multibrand
Capper Brand :
Arol
Container material :
Pet
Automatic interleaf applicator :
Yes
Number of label magazines :
2
Number of reels :
1
Number of plates :
18
Number of grippers :
70
Number of grippers (in-out) :
14
Number of lanes :
6
Number of moulds :
14
Number of capping heads :
12
Number of valves :
80
Mandrel number :
240
Pallets handled :
Epal 1200×800 mm
Machine Pitch (mm) :
125 mm
Worked product :
Still water
Sparkling Water
Soft Drinks
Type of glue :
Hot Glue
Type of label :
OPP
Type of handles :
Pre-cut paper
Packaging Type :
Film
Type of transfer :
Body
Machine type :
Rotary
Max speed :
18000
