BBM Service's engineering department has designed and built the first universal module that allows the elimination of air belts for bottle transport between the main PET line machines.

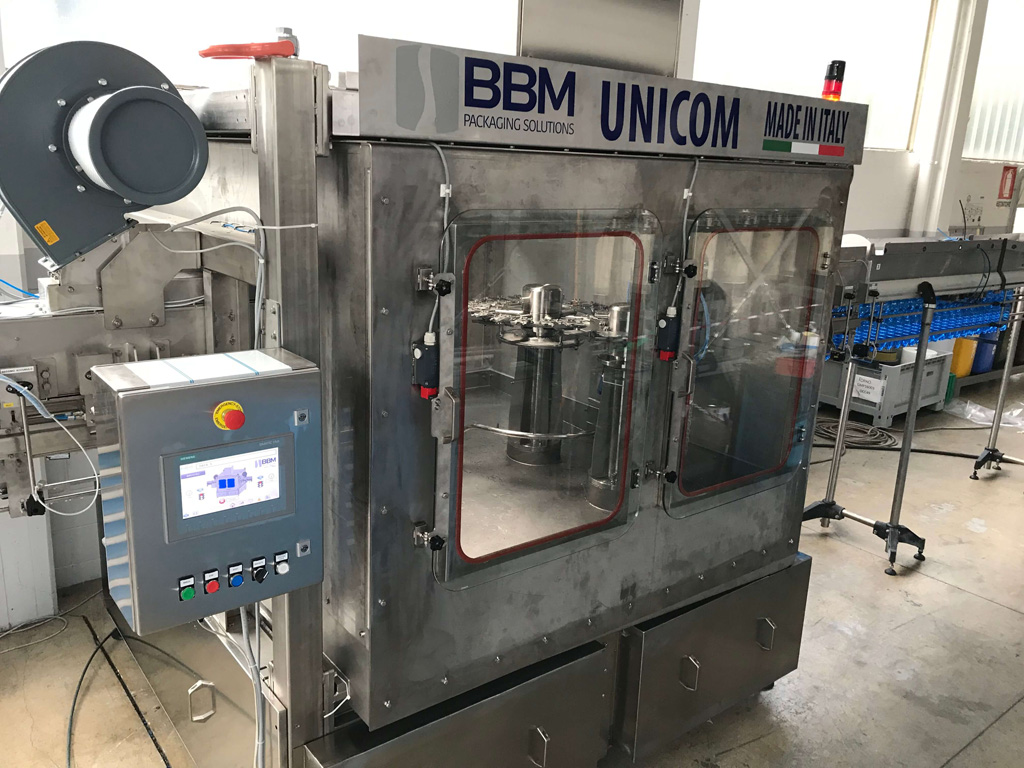

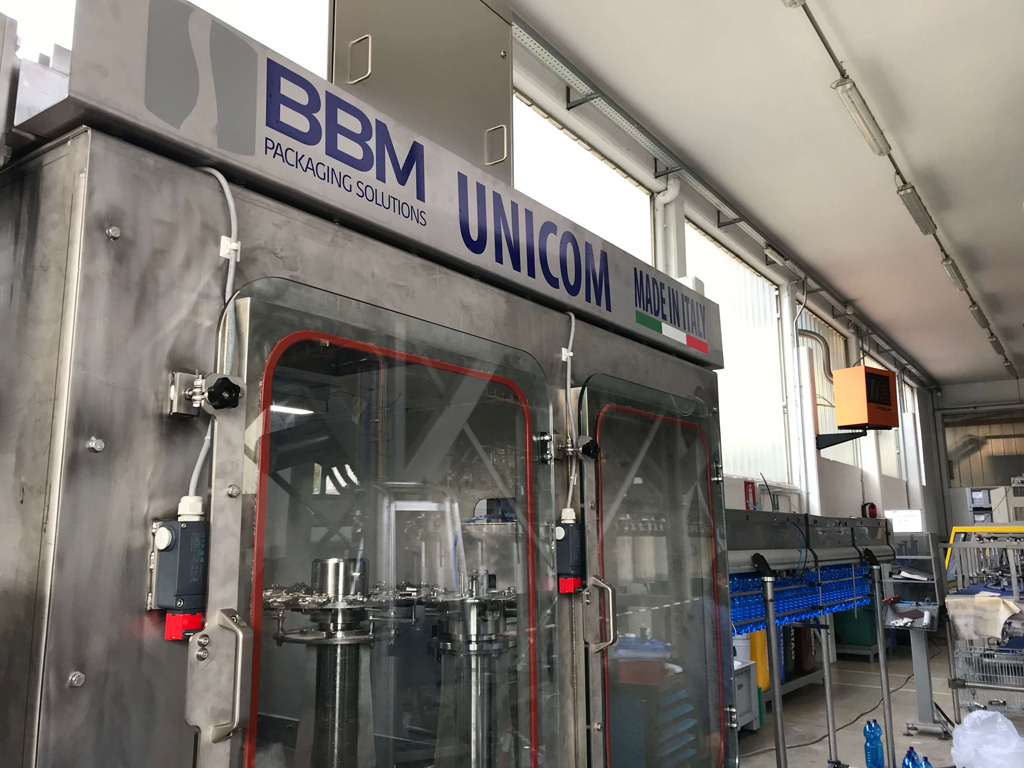

The module is called UNICOM because it unifies and combines a blow molding and filling machine of any manufacturer. The module, designed to modernize and optimize the PET bottling line, consists of a bench aimed at transporting bottles between the two machines in a short distance, reducing water and energy consumption, the risks of bottle contamination, and the problems of crushing and distortion of the bottles themselves.Technical Features
- ● Precision pairing for adapting different blow molding/filling machines
- ● Mechanical transmission with axes dependent on a single motor drive
- ● Transfer star-wheel
- ● Hydraulic cooling circuit
- ● Nominal production: 25.000 bph
Advantages
- ● Adapts to every blow molding-filling machine
- ● Eliminates conveyors between blow molding and filler machine
- ● Reduces the line's dimension
- ● Eliminates bottle deformation and rubbing
- ● Better bottle bottom cooling
- ● Energy and water saving
Options available
- ● Stainless steel structure - easily cleaned and resistant
- ● Fan cabin to keep air clean from external particles
- ● Automatic adjustment system to adapt to different formats
- ● Bottle chiller
Description

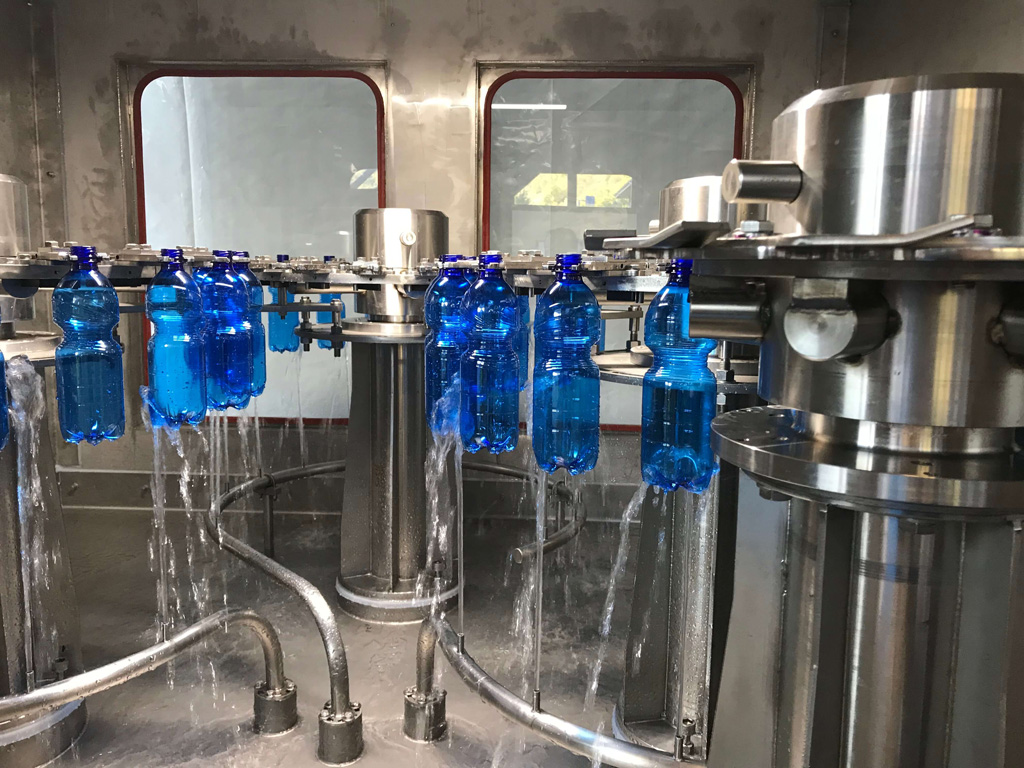

In recent years, new market and production requirements have led to the increasingly common choice of bottles made with a lower weight, in order to reduce the raw material used and the related costs. Being lighter, these green bottles are more subject to the risk of deformation during the journey; the same applies to recycled plastic bottles, which are particularly subject to binding and rubbing. Thanks to a star-shaped transfer system, UNICOM is the best solution available to overcome these problems and guarantee the safeguarding of the wrappers.

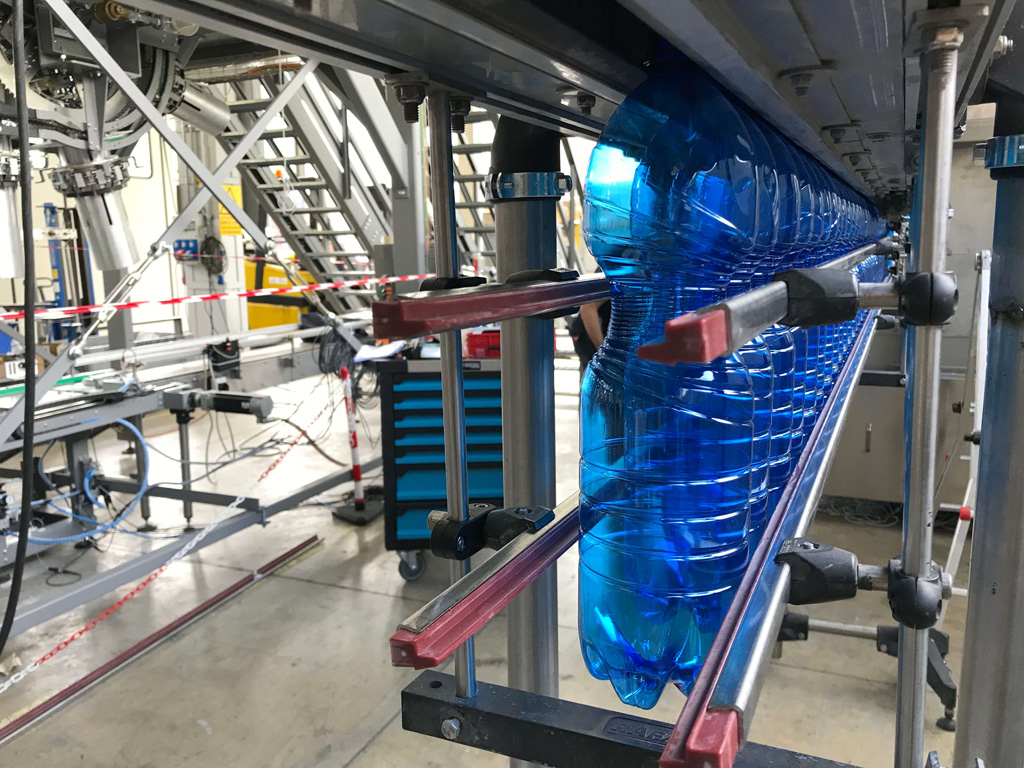

“The module is fantastic and helps a lot in production, space management, and hygiene; the bottles, which previously ran on-air conveyors and were exposed to dust, now pass directly into the filler. Another advantage is the ease of format change operations; BBM’s intervention has brought old machines to top performance levels. BBM provided a fast, turnkey service; we had a great time with the engineering department and the installation was done directly by BBM technicians. They managed every single step. It’s a product I would recommend to everyone.”
Giampiero Latassa, CEO of Fabriella Group
